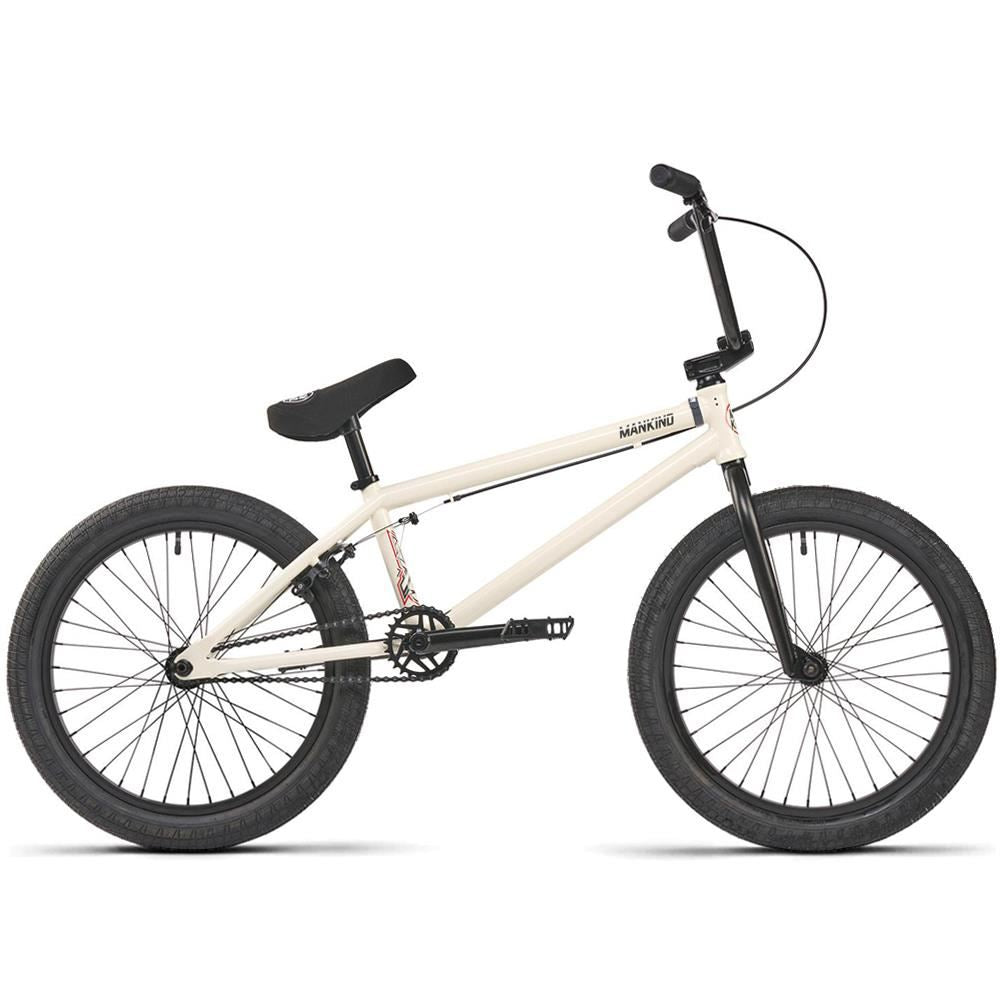

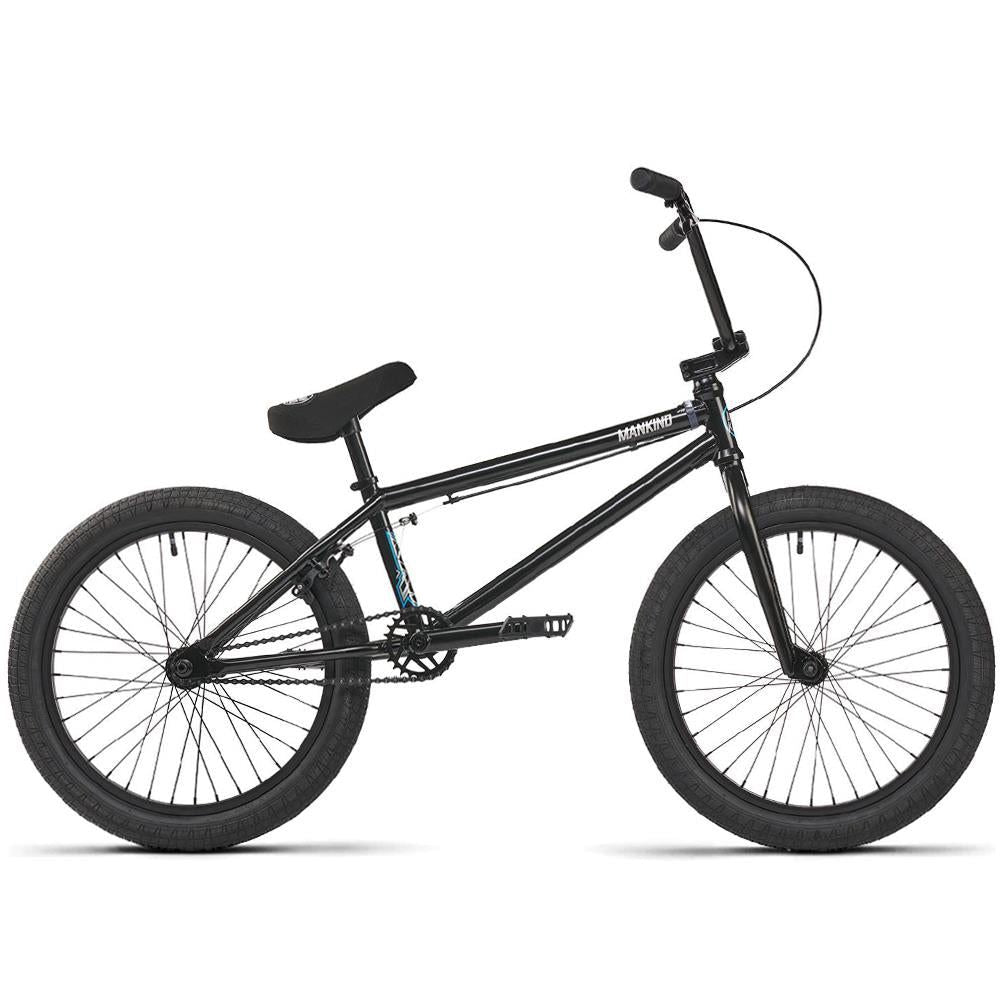

The Mankind NXS JR Bike offers up a shorter 20" top tube option on their ever popular NXS range.
Mankind have utilised 1020 Hi-ten steel construction throughout the frame, fork and bars making the NXS JR Bike incredibly strong and durable. A sealed integrated headset and sealed Mid bottom bracket round out the frame.
Keeping this complete rolling smooth is a loose ball front hub and Mankind "Control" cassette hub both laced to aluminium single wall rims ad 2.3" wide tyres for all the traction you need.
Product Specs
- FRAME MATERIAL: 1020 Hi-Ten Steel
- WHEEL SIZE: 20"
- TOP TUBE LENGTH: 20"
- CHAIN STAY LENGTH: 13.25"
- HEADTUBE ANGLE: 75°
- SEAT TUBE ANGLE: 71°
- FORKS: 100% Hi-Ten Steel with Tapered Fork Legs
- BARS:
- MATERIAL: Hi-Ten
- TYPE: 2-Piece
- RISE: 8.5" Rise
- WIDTH: 28.5" Width - STEM: Alloy Top Load
- HEADSET: Integrated
- BRAKE MOUNTS: Welded U-Brake
- BRAKES: U-Brake
- FRONT HUB: 10mm Loose Ball
- FRONT RIM: Single Wall
- REAR HUB: 14mm Sealed Cassette
- REAR RIM: Single Wall
- TYRES: 2.3"
- SPROCKET: 25t
- CRANKS:
- MATERIAL: Chromoly
- TYPE: 3-Piece
- ARM LENGTH: 170mm - BB: 19mm Mid
- PEDALS: Plastic
- SEAT: Combo Seat/Post
- GEARING: 25/9
- WEIGHT: 23.59lbs (11kg)
Product Highlights
- Full Size Bike with a Shorter Top Tube and geometry to Suit riders who are 4ft - 5ft 4" / 120cm -160cm
- Great for Riders who are just too small to handle a full size 20" BMX
- Strong Hi-ten steel construction
- Strong and durable crankset
- Sealed rear hub
